Problem with WD Marvel Demo

Questions about Wdmarvel capabilities
locarno
Сообщения: 159
Зарегистрирован: 20 фев 2014, 18:10

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение locarno »

How to ?
Please give me more details
Аватара пользователя
Vlad
Разработчик
Сообщения: 5006
Зарегистрирован: 13 авг 2013, 07:53

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение Vlad »

Take the same not locked hdd, with the same version of FW
Connect it to the power
Give the command to stop the engine
Do not turn off the power, swap board on locked hdd
Give the command to start the engine
Read SA
In the module 02, watch the password
Return original board and unlock
locarno
Сообщения: 159
Зарегистрирован: 20 фев 2014, 18:10

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение locarno »

Read by WDR
Current Selection portion of the Field List
***************************************************
format_version = 0x101
DCM Selection = 0x1
cur_stroke = 0x1
phy_heads = 0x2
used_heads = 0x2
cur_capacity = 2000.4Gb
final_capacity_selection = 0xC
max_fmt_LBAs = 0x1D1C8CA0 (488410272) 250Gb
target_capacity_selection = 0xC
target_max_fmt_LBAs = 0xFFFFFFFF (4294967295) 2199Gb
hq_capacity_selection = 0x1
HQ_max_fmt_LBAs = 0x25441200 (625218048) 320Gb

Zone 0 DTPI = 0x3E7C1 (255937)
Zone 0 KFCI = 0x28F5C14 (42949652)

cur_svo_TPI = 0x445C0 (280000)

cur_data_TPI_0 = 0x48A1C (297500)
cur_data_TPI_1 = 0x4A3BE (304062)
cur_data_TPI_2 = 0x0 (0)
cur_data_TPI_3 = 0x0 (0)
cur_data_TPI_4 = 0x0 (0)
cur_data_TPI_5 = 0x0 (0)
cur_data_TPI_6 = 0x0 (0)
cur_data_TPI_7 = 0x0 (0)

cur_KFCI_0 = 0x2712 (1000.2Gb)
cur_KFCI_1 = 0x2712 (1000.2Gb)
cur_KFCI_2 = 0x0 (0.0Gb)
cur_KFCI_3 = 0x0 (0.0Gb)
cur_KFCI_4 = 0x0 (0.0Gb)
cur_KFCI_5 = 0x0 (0.0Gb)
cur_KFCI_6 = 0x0 (0.0Gb)
cur_KFCI_7 = 0x0 (0.0Gb)
cur_KFCI_8 = 0x0 (0.0Gb)
cur_KFCI_9 = 0x0 (0.0Gb)

max_LBA_for_head_0 = 0xE8E4650 (244205136) 125Gb
max_LBA_for_head_1 = 0xE8E4650 (244205136) 125Gb
max_LBA_for_head_2 = 0x0 (0) 0Gb
max_LBA_for_head_3 = 0x0 (0) 0Gb
max_LBA_for_head_4 = 0x0 (0) 0Gb
max_LBA_for_head_5 = 0x0 (0) 0Gb
max_LBA_for_head_6 = 0x0 (0) 0Gb
max_LBA_for_head_7 = 0x0 (0) 0Gb

max_user_cyls_for_head_0 = 0x2D759 (186201)
max_user_cyls_for_head_1 = 0x2E574 (189812)
max_user_cyls_for_head_2 = 0x0 (0)
max_user_cyls_for_head_3 = 0x0 (0)
max_user_cyls_for_head_4 = 0x0 (0)
max_user_cyls_for_head_5 = 0x0 (0)
max_user_cyls_for_head_6 = 0x0 (0)
max_user_cyls_for_head_7 = 0x0 (0)

max_virt_cyls_for_head_0 = 0x2DBC8 (187336)
max_virt_cyls_for_head_1 = 0x2E9EE (190958)
max_virt_cyls_for_head_2 = 0x0 (0)
max_virt_cyls_for_head_3 = 0x0 (0)
max_virt_cyls_for_head_4 = 0x0 (0)
max_virt_cyls_for_head_5 = 0x0 (0)
max_virt_cyls_for_head_6 = 0x0 (0)
max_virt_cyls_for_head_7 = 0x0 (0)

rsvd_svo_cyls = 0x200
rsvd_data_cyls = 0x100

trks_per_clstr_svo = 0x80
trks_per_clstr_rsvd = 0x0
trks_per_clstr_for_head_0 = 0x0
trks_per_clstr_for_head_1 = 0x0
trks_per_clstr_for_head_2 = 0x0
trks_per_clstr_for_head_3 = 0x0
trks_per_clstr_for_head_4 = 0x0
trks_per_clstr_for_head_5 = 0x0
trks_per_clstr_for_head_6 = 0x0
trks_per_clstr_for_head_7 = 0x0

stroke = 1
DCM = 1

Hd0 TPI = 35
Hd1 TPI = 34
Hd2 TPI = 0
Hd3 TPI = 0
Hd4 TPI = 0
Hd5 TPI = 0
Hd6 TPI = 0
Hd7 TPI = 0

Hd0 Capacity = 25
Hd1 Capacity = 25
Hd2 Capacity = 0
Hd3 Capacity = 0
Hd4 Capacity = 0
Hd5 Capacity = 0
Hd6 Capacity = 0
Hd7 Capacity = 0
and this:

Код: Выделить всё

    http://www44.zippyshare.com/v/90482182/file.html
Аватара пользователя
Vlad
Разработчик
Сообщения: 5006
Зарегистрирован: 13 авг 2013, 07:53

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение Vlad »

This is useless for you :(
locarno
Сообщения: 159
Зарегистрирован: 20 фев 2014, 18:10

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение locarno »

SA is locked
What I must do ? I have full WDR 3.2. I don;t have unlocked HDD
Аватара пользователя
Vlad
Разработчик
Сообщения: 5006
Зарегистрирован: 13 авг 2013, 07:53

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение Vlad »

Give me your email
I'll send you slightly modified version
May be able to see the password
locarno
Сообщения: 159
Зарегистрирован: 20 фев 2014, 18:10

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение locarno »

This disk have password ? Victoria for windwows say No security
Disk is 0LBA
I'am stupid or what ?

Please send

Please look this thread too
http://malthus.zapto.org/viewtopic.php? ... 3173#p3173
There say to me I must replace 02module
Последний раз редактировалось locarno 07 июл 2019, 12:15, всего редактировалось 1 раз.
Аватара пользователя
Vlad
Разработчик
Сообщения: 5006
Зарегистрирован: 13 авг 2013, 07:53

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение Vlad »

Check mail
Connect the drive and select the controller as you have already done

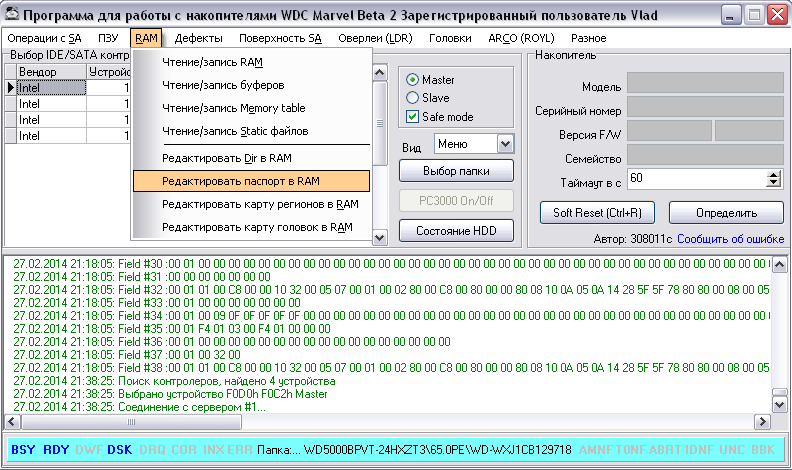

Click the menu as on screen
Take a screenshot
Вложения
locarno
Сообщения: 159
Зарегистрирован: 20 фев 2014, 18:10

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение locarno »

Hmmm, My Mail is empty, can you send to other mail ? this:

xxx

I have full version WDR 3.2 not WD MARVEL (remeber)
ss:

I must install Rus Window's ?

Here is log from wd marvel:
2014-02-28 00:58:21: Field #0 :00 01 57 44 2D 57 58 32 31 41 43 30 38 35 33 39 38 00 00 00 00 00 00
2014-02-28 00:58:21: Field #1 :00 01 10 3F 00 00 00 00 FF FF FF FF FF FF FF FF FF FF FF FF 00 00 00 00
2014-02-28 00:58:21: Field #2 :00 01 A4 42 80 00 00 00 07 7F 80 00 06 F4 01 01 40 01 00 30 16 05 64 00 00 00 00 20 0A 14 00 00 00 14 00 00 00 01 00 00 00 00 00 0A A0 0F 00 00 00 BC 34 00 00 00 00 10 01 00 02 1E 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 01 AC 0D 00 00 80 88 13 88 13 00
2014-02-28 00:58:21: Field #3 :00 01 01 00 40 00 40 01 32 00 05 07 00 01 00 02 80 00 3C 00 80 00 00 80 08 10 0A 05 0A 24 2E 42 5F 78 80 80 00 08 00 05 80 00 02 00 03 06 00 08 00 04 0F 00 0E 00 00 05 08 00 80 01
2014-02-28 00:58:21: Field #4 :00 01 04 00 00 01 02 0A 0B 07 05 02
2014-02-28 00:58:21: Field #5 :00 01 02 06 02 00 00 02 06 00 00 06 04 00 03 02 00 16
2014-02-28 00:58:21: Field #6 :00 01 01 01 64 32
2014-02-28 00:58:21: Field #7 :00 01 14 64 00 00 01 01
2014-02-28 00:58:21: Field #8 :00 01 64 00 00 4E 00 00 7E 00 00 07 01 78 01 00 64 00 00 00 00 00 00 00 00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #9 :00 03 84 7C F8 00 0A FA 14 3C 40 00 01 04 0A FA 00 00
2014-02-28 00:58:21: Field #10 :00 01 0E 00 00 00 02 02 00 0F 32 0C CA FA 0A 32 0A 01 3C 55 00 D7 00 00 20 00 C8 00 00 BA 00 19 01 00 00 00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #11 :00 01 55 02 28 00 22 00 0A 00 00 00 00 00 00 01 00 00
2014-02-28 00:58:21: Field #12 :00 01 E0 01 0F 0F 01 02 02 0A 01 02 00 02 02 04 01 00 FF FF 02 03 50 01 1E 00 80 08 04 40 0B 02 00 E8 03 64 00 FF FF 10 00 00 00 00 00 0A 80 96 98 00 C0 D8 A7 00 00 00 00 00
2014-02-28 00:58:21: Field #13 :00 01 10 00 00 00 05 00 00 00 00 00 FF FF 00 00 00 00 14 0A 14 00 00 00 05 00 00 00 00 00 1E 00 00 00 00 00 00 00 00 00 4D 00 1D 00 07 00 12 25 00 00 00 0E 00 01 00 00 05 00 00
2014-02-28 00:58:21: Field #14 :00 01 02 06 28 0E 01 00 07 00 01 02 0D 00 00 00 00
2014-02-28 00:58:21: Field #15 :00 01 03 00 03 01 0B 01 00 00 00 00 00 00
2014-02-28 00:58:21: Field #16 :00 01 00 00 00 00 AF 6D 70 74 00 00 00 00 00 00 00 00 00 00 00 00 49 42 4D 2D 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 00 00
2014-02-28 00:58:21: Field #17 :00 01 53 7C 42 42 4C 7C 50 4E 4D 4C 48 49 43 53 52 4C 56 59 4B 47 55 4A 00 20 20 20 20 20 20 20 20 20 20 20 20 20 31 32 2D 30 39 2D 32 30 31 30 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #18 :00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 57 44 43 57 44 43 57 44 43 57 44 43 57 44 43 57 44 43 57 44 43 57 44 43 57 44 43 57 44 43 57 00 62 09 FE FF 25 00
2014-02-28 00:58:21: Field #19 :00 01 01 00 C8 00 FF FF 32 00 05 07 00 01 00 02 80 00 C8 00 80 00 00 80 08 10 0A 05 0A 14 28 5F 5F 78 80 80 00 08 00 05 80 00 02 00 0C 06 00 08 00 10 0F 00 0E 00 00 05 08 00 80 01
2014-02-28 00:58:21: Field #20 :00 01 01 00 C8 00 FF FF 32 00 05 07 00 01 00 02 80 00 C8 00 80 00 00 80 08 10 0A 05 0A 14 28 5F 5F 78 80 80 00 08 00 05 80 00 02 00 10 07 00 0C 00 10 0F 00 1C 00 00 05 08 00 80 01
2014-02-28 00:58:21: Field #21 :00 01 02 06 02 00 00 02 03 00 00 06 06 00 05 0A 00 16
2014-02-28 00:58:21: Field #22 :00 01 30 1C 00 05 00 64 00 14 20 32 00 00 00 0F
2014-02-28 00:58:21: Field #23 :00 01 03 00 00 01 78 00 32 00 20 00 55 FF
2014-02-28 00:58:21: Field #24 :00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 01 01 01 01 01 00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #25 :00 00 00 01 30 44 50 5A 30 30 36 32 11 00 04 00 01 00 00 00 00 00 00 00 00 00 01 88 88 88 88 44 44 22 53 4D 54 45 53 54 20 53 54 52 49 4E 47 20 4C 41 52 47 45 20 53 49 5A 45 20 49 53 20 31 30 30 20 42 59 54 45 53 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 2D 00 4F 44 44 00 00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #26 :00 01 02 01 00 32 00 00 80 0C 00 00 00 00 32 00 00 00 64 00 00 00 1E 00 00 00 05 D6 06 00 4B 00 00 19 00 00 00 01 01 08 01 00 00 00 00 40 00 02 40 00 10 04 00 40 01 00 01 00 00
2014-02-28 00:58:21: Field #27 :00 01 01 00 C8 00 00 40 32 00 05 07 00 01 00 02 80 00 C8 00 80 00 00 80 08 10 0A 05 0A 14 28 5F 5F 78 80 80 00 08 00 05 80 00 02 00 10 08 00 18 00 40 0F 00 38 00 00 05 08 00 80 01
2014-02-28 00:58:21: Field #28 :00 01 00 28 64 00 2C 01 03 00 00 C8 00 00 00 00 00
2014-02-28 00:58:21: Field #29 :00 01 0C 00 14 03 3C FE FF FF 0F 03 41 03 00 00 00 00 2C 01 00 00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #30 :00 01 01 F4 01 00 00 1E 00 00 00 64 00 00 00 64 00 00 00 64 00 00 00 64 00 00 00 00 02 00 00 00 02 00 00 08 00 00 00 FD FF 00 00 FF FF 00 00 05 0A 0C 00 00 00 FD FF 00 00 FF FF 00 00 01
2014-02-28 00:58:21: Field #31 :00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #32 :00 01 01 00 C8 00 FF FF 32 00 05 07 00 01 00 02 80 00 C8 00 80 00 00 80 08 10 0A 05 0A 14 28 5F 5F 78 80 80 00 08 00 05 80 00 02 00 10 08 00 08 00 60 0F 00 38 00 00 05 08 00 80 01
2014-02-28 00:58:21: Field #33 :00 01 00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #34 :00 01 00 09 0F 0F 0F 0F 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
2014-02-28 00:58:21: Field #35 :00 01 F4 01 03 00 F4 01 01 00 00
@EDIT
me noob. Your message is in SPAM. Thank you.
Последний раз редактировалось locarno 15 янв 2021, 13:38, всего редактировалось 2 раза.
Аватара пользователя
Vlad
Разработчик
Сообщения: 5006
Зарегистрирован: 13 авг 2013, 07:53

Re: Problem with WD Marvel Demo on Polish Windows

Сообщение Vlad »

Wrong version...
Use program from mail...
